胶辊在锂电池领域的应用

胶辊在锂电池领域的应用

Application of Rubber Rollers in Lithium Batteries

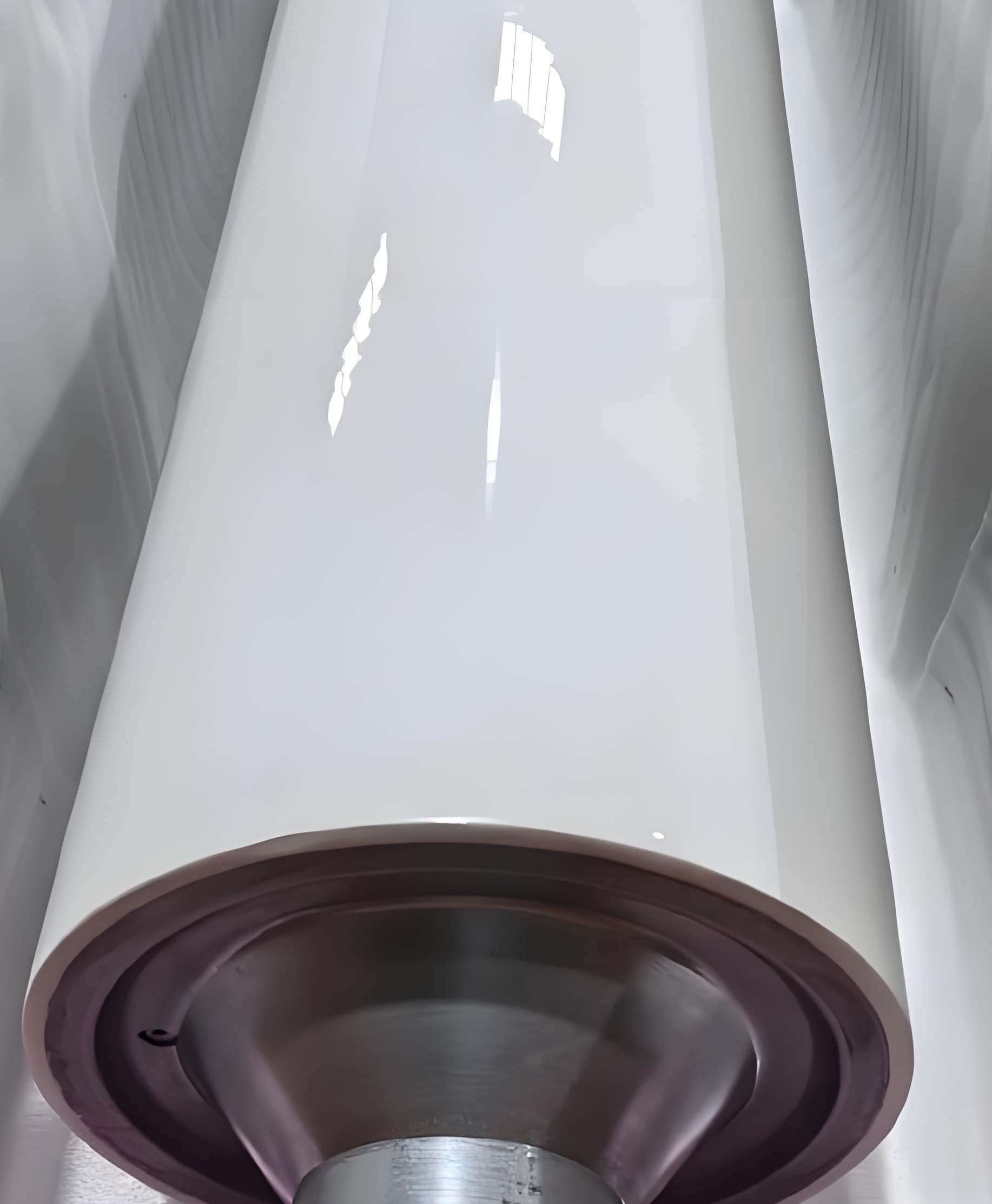

1.电解铜箔胶辊

产品简介

电解铜箔胶辊

专为锂电池负极材料电解铜箔生产打造，涵盖生箔、成箔后处理及分切全工序所需的全系列胶辊，包括液下辊、导电辊、挤酸辊、挤水辊、收卷压辊、分切压辊等。尤其是耐腐蚀液下辊，采用邵氏D80-90°硬质胶料，具备防粘附、耐腐蚀、耐高温、高刚性等优异性能，深受用户认可，为高效稳定的生产提供坚实保障。

Electrolytic Copper Foii Rollers

Product introduction

Specifically designed for the production of electrolytic copper foil for lithium battery anode materials, it covers a full series of rubber rollers required for the entire process of green foil production, finished foil post-processing, and slitting, including submersible rollers, conductive rollers, acid squeezing rollers, water squeezing rollers, winding pressure rollers, slitting pressure rollers, etc. In particular, the corrosion-resistant submersible rollers, made of Shore D80-90° hard rubber materials, have excellent properties such as anti-adhesion, corrosion resistance, high temperature resistance, and high rigidity, which are highly recognized by users and provide a solid guarantee for efficient and stable production.

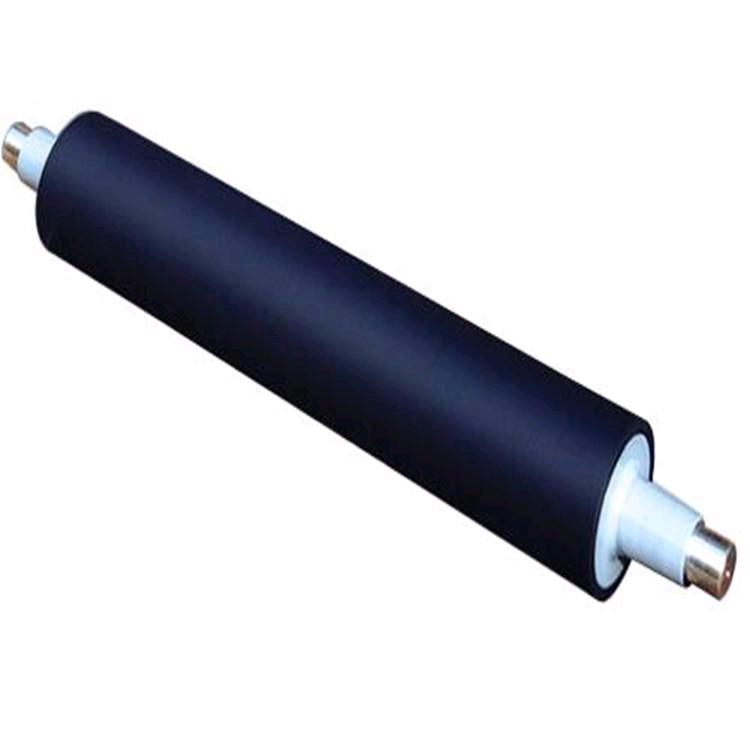

2.隔膜挤液辊组

 Diaphragm Liquid - Pressing Roller Group

产品简介

双胶辊挤液辊组为高效去除湿法锂电池隔膜中残留的二氯甲烷，我们研发了独特的双辊挤液技术。系统由挤液底辊和挤液压辊组成，底辊内置加热功能，可迅速烘干膜内残余液体，压则采用优化的受力结构，确保膜面均匀受压，解决了传统工艺中液体挤出不均及残留难去除的问题。该技术通过高效挤液，显著降低后续蒸发溶剂的能耗，从而大幅减少干燥机组能耗，提升生产效率的同时达到节能减排效果。同时，挤液辊组采用耐二氯甲烷的专用氟橡胶，避免了橡胶溶胀并延长了使用寿命。辊面可根据需求进行耐腐蚀涂层处理，隔离溶剂与橡胶，进一步提升耐用性，便于清洁与维护，防止膜面受损。此技术不仅有效提升膜质量，也优化了生产过程，成为隔膜生产中的关键技术创新。

Product introduction

Dual Rubber Roller Liquid Squeezing Unit To efficiently remove residual methylene chloride from wet-process lithium battery separators, we have developed a unique dual-roller liquid squeezing technology. The system consists of a liquid-squeezing bottom roller and a pressure roller:- The bottom roller has built-in heating to quickly dry residual liquid in the membrane.

- The pressure roller adopts an optimized force-bearing structure to ensure uniform pressure on the membrane surface, solving the problems of uneven liquid extrusion and difficult residue removal in traditional processes.

This technology significantly reduces energy consumption for subsequent solvent evaporation through efficient liquid squeezing, thereby cutting energy use in drying units. It improves production efficiency while achieving energy conservation and emission reduction. The liquid squeezing unit uses special fluororubber resistant to methylene chloride to avoid rubber swelling and extend service life. The roller surface can be treated with a corrosion-resistant coating to isolate the solvent from the rubber, further enhancing durability, facilitating cleaning/maintenance, and preventing membrane damage. This technology not only improves membrane quality but also optimizes the production process, becoming a key technological innovation in separator manufacturing.

3.极片涂布胶辊

 Electrode Coating Rubber Roller

产品简介

极片涂布胶辊专为锂电池极片涂布工艺设计的胶辊，采用专用氟橡胶并配有耐腐蚀涂层，专门应对调制白矿油、 NMP 等有机溶剂4腐蚀问题。氟橡胶能够有效抵抗溶剂的侵蚀，延长使用寿命。表面涂层进一步隔离溶剂与橡胶，防止溶胀，同时降低表面能，减少低聚物等有害物质的附着，便于清洁维护。这一创新设计显著提高了胶辊的耐用性，有效避免了频繁更换的问题，提升了生产效率与产品质量，是极片涂布工艺中的理想选择。

Product introduction

 Electrode Coating Rubber rollers specially designed for lithium battery electrode coating processes are made of special fluororubber and equipped with corrosion-resistant coatings to specifically address corrosion issues caused by organic solvents such as white mineral oil and NMP. Fluororubber effectively resists solvent erosion and prolongs service life. The surface coating further isolates the solvent from the rubber to prevent swelling, while reducing surface energy to minimize adhesion of harmful substances like oligomers, facilitating cleaning and maintenance. This innovative design significantly enhances the durability of rubber rollers, effectively avoids frequent replacement, improves production efficiency and product quality, and is an ideal choice for electrode coating processes.

4.隔膜涂布胶辊

Coating Roller for Lithium Battery Separator

产品简介

锂电池隔膜涂布胶辊锂电池隔膜涂布过程中，胶辊常面临受力不均、化学腐蚀及溶胀等难题，导致两侧压力过大、边部磨损快、使用寿命短，频繁更换影响生产效率。针对这些问题，我们推出专为锂电池隔膜涂布设计的高性能涂布胶辊。该胶辊采用双层结构设计，通过优化橡胶压合面的受力分布，确保涂布过程中压力均匀，显著降低边部磨损。同时，面选用专用橡胶，具备卓越的耐化学性能，可有效抵抗如 DMAC 等有机溶剂的腐蚀和溶胀问题，大幅延长使用寿命。此外，胶辊表面增加耐化学品涂层，不仅进一步隔离溶剂与橡胶，提升耐用性，还具备低表面能特性，避免低聚物及其他有害物质附着，清洁维护便捷，从而提高涂布质量与生产效率。锂电池隔膜涂布胶辊以耐用、稳定、高效的特性，成为涂布环节中的可靠之选，为客户实现高品质生产保驾护航。

Product introduction

Lithium Battery Separator Coating Rubber Rollers

During lithium battery separator coating, rubber rollers often face challenges such as uneven force distribution, chemical corrosion, and swelling, leading to excessive pressure on both sides, rapid edge wear, short service life, and frequent replacements that affect production efficiency. To address these issues, we introduce high-performance coating rubber rollers specifically designed for lithium battery separator coating.These rollers feature a dual-layer structure that optimizes force distribution on the rubber pressing surface, ensuring uniform pressure during coating and significantly reducing edge wear. The surface uses specialized rubber with excellent chemical resistance, effectively resisting corrosion and swelling from organic solvents like DMAC to greatly extend service life. Additionally, a chemical-resistant coating on the roller surface not only further isolates the solvent from the rubber to enhance durability but also has low surface energy to prevent adhesion of oligomers and other harmful substances, enabling easy cleaning and maintenance while improving coating quality and production efficiency.With their durable, stable, and efficient characteristics, lithium battery separator coating rubber rollers become a reliable choice in the coating process, safeguarding high-quality production for customers.

5.锂电池铝箔胶辊

Traction Pressure Roller

产品简介

在锂电池铝箔生产过程中，胶辊起着至关重要的作用。涂布胶辊确保涂层均匀，并精确控制涂布厚度，保证材料的良好附着力，提升铝箔的整体性能。清洁胶辊能够有效去除铝箔表面产生的尘埃和污染物，避免影响后续工艺的量。压延胶辐通过均匀施加压力，确保铝箔的厚度一致，并使表面保持平滑。传输胶辊负责平稳传输铝箔，避免在过程中产生变形、皱褶或静电积累，确保生产流程的顺畅。覆膜胶辊则确保保护膜或功能层均匀贴附在铝箔表面，从而提开铝箔的耐用性和长期性能。

Product introduction

In the production process of lithium battery aluminum foil, rubber rollers play a crucial role:- Coating rubber rollers ensure uniform coating, precisely control coating thickness, guarantee good material adhesion, and enhance the overall performance of aluminum foil.- Cleaning rubber rollers effectively remove dust and pollutants on the aluminum foil surface to avoid affecting the quality of subsequent processes.- Calendering rubber rollers ensure consistent aluminum foil thickness and a smooth surface by applying uniform pressure.- Transport rubber rollers are responsible for smoothly conveying aluminum foil to prevent deformation, wrinkles, or static electricity accumulation during the process and ensure smooth production flow.

- Laminating rubber rollers ensure that protective films or functional layers are evenly attached to the aluminum foil surface, thereby improving the durability and long-term performance of aluminum foil.
